Description

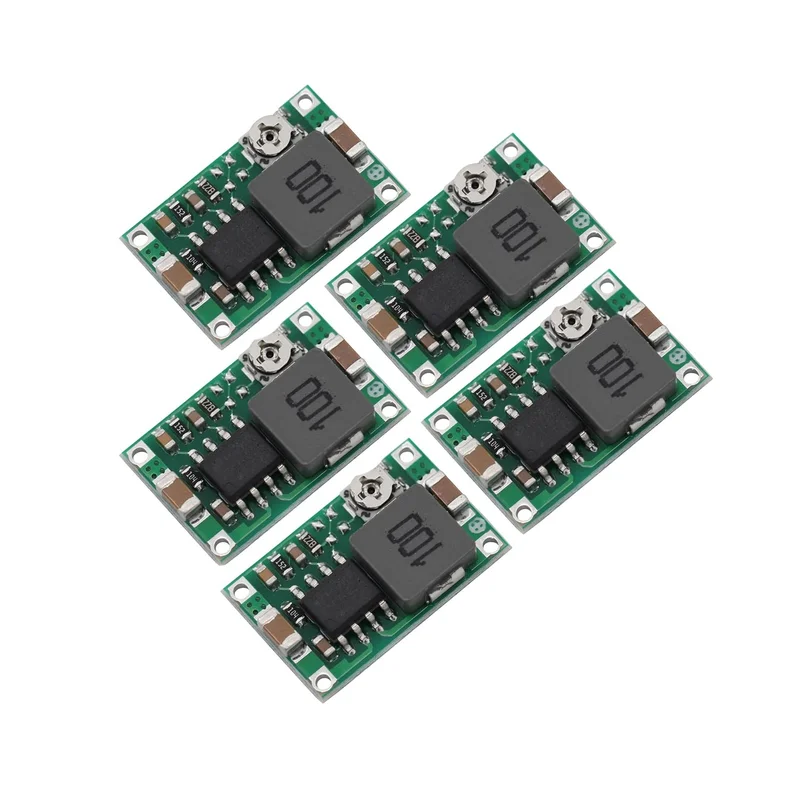

Module features: non-insulated step-down converter;Rectification: synchronous rectification; Dimensions: 17 x 11 x 3.8 mm (L x W x H). Thanks to their small size, they are easy to install and fit into limited spaces.
Input voltage: 4.75V-23V; Output voltage: 1.0V-17V (adjustable- output < input); The output current can be up to 3A (Please improve the heat sink for full load), the no-load current is 8mA and the conversion efficiency up to 96%; load control of the Mini360 DC-DC Downside wall Learning module: ±0.5%; voltage regulation: ±2.5%.
Voltage step-down module output current: decrease the value of 3A, long 1.8A; switching frequency: 340KHz switching frequency, less than 30mV ripple (without load).
With a step-down converter, you can lower the input voltage to a lower output voltage. This module is extremely useful in various applications where it is required to provide power at a lower voltage than that available from a source such as batteries or power supplies.
Application: RC aircraft module mini 360 DC step-down converter downward module for portable DIY source, vehicle power supply, power supply for communication equipment, aircraft model, etc.
